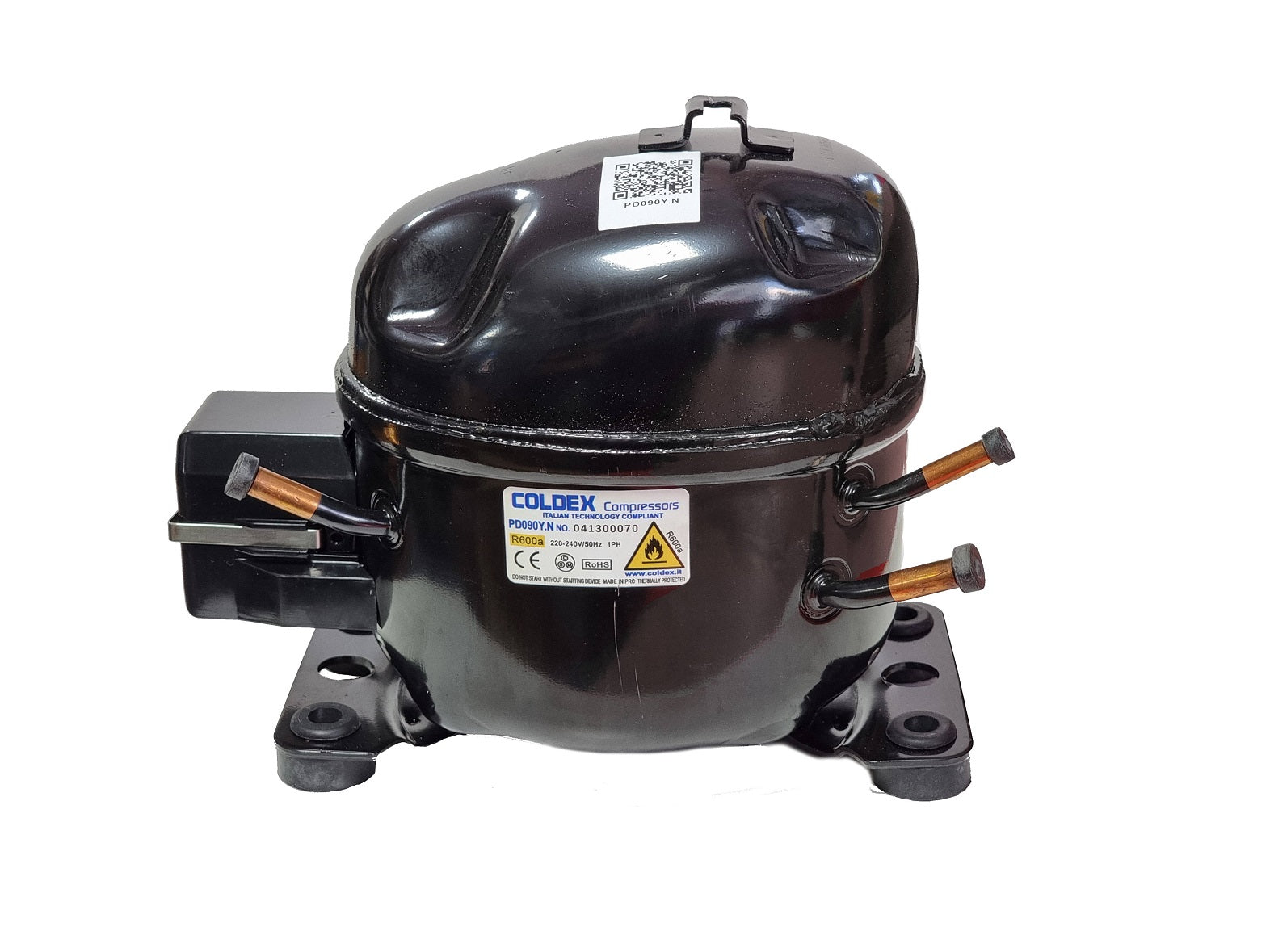

MFF02CX - Kompresor R600 LBP 09.10cm³ Coldex PD090Y.N 1/5hp 155w

MFF02CX - Kompresor R600 LBP 09.10cm³ Coldex PD090Y.N 1/5hp 155w

Lek 7,000.00

Kodi: MFF02CX

00 Neutral

01- FTOHJE

60 Në magazinë

Njesi: copë

-
+

MFF02CX

Model Overview
Model: PD090Y.N
Refrigerant: R600a (Isobutane)
Displacement: 9.1 cc
Rated Voltage/Frequency: 220-240V/50 Hz
Application: Low Back Pressure (LBP)
Operating Conditions
Evaporator Temperature Range: -35°C to -15°C
Maximum Ambient Temperature: 43°C
Expansion Device: Capillary tube
Motor Type: RSIR (Run Capacitor Start Induction Run)
Performance Parameters
Test Conditions: ASHRAE LBP -23.3°C
Cooling Capacity:
Watt (≥95%): 155 W
Kcal/h: 133
BTU/h: 529
Rated Power Consumption:
Watts (≤115%): 119 W
Current (≤110%): 0.85 A
Coefficient of Performance (COP): 1.30 W/W
Energy Efficiency Ratio (EER): 4.44 BTU/Wh
Accessories Included
Protector: 1 unit
Starting Relay (PTC): 1 unit, 15Ω
Cover: 1 unit
Screw for Relay Cover: 1 unit
Cord Lock: 1 unit
Screw for Cord Lock: 1 unit
Earth Screw Assembly: 1 unit
Rubber Mat: 4 units
Sleeve: 4 units
Dimensions
Height: 172 mm
Suction Tube Inner Diameter: Ø 6.2±0.1 mm
Process Tube Inner Diameter: Ø 6.2±0.1 mm
Discharge Tube Inner Diameter: Ø 5.0±0.1 mm
