Ftohje

Modeli: NEK2134GK
Aplikimi: LBP (Low Back Pressure)
Gazi Ftohës: R-404A
Fuqia: 1/2 HP
Furnizimi elektrik: 220–240 V / 50 Hz
Lloji i motorit: CSIR
Displacement: 8.77 cm³
Kapacitet ftohës: 464 W
Vaj: 350 ml, Ester (ISO 22)
Kondensator starti: 53–64 µF / 330 V
Nisja: Relay (Starting torque: HST)
Mbrojtje termike: T0168/G5
Lidhjet e tubave (bakër): Suction: 8.1 mm (42°); Discharge: 6.1 mm (straight); Process: 6.1 mm (42°)
Pesha: 11 kg

Modeli: MPT14RA
Tensioni: 220-240V, 50Hz
Faza: 1-fazore
Gazi ftohës (Refrigerant): R404a
Përdorimi: High Back Pressure (HBP)
Temperatura e avullimit (Evaporating Temp.): -15°C deri +10°C
Temperatura maksimale ambientit: 43°C
Vëllimi i cilindrit (Displacement): 14.32 cm³
Pesha neto: 12.25 kg
Lloji i vajit: ISO VG 32 ESTER
Sasia e vajit: 400 cm³
Kondensator starti: 64-77 µF / 330V
Kondensator pune: 25 µF / 420V
Kapaciteti ftohës (sipas ASHRAE): Në 7.2°C (Te) / 55°C (Tc): 2.341 kCal/h (1.750W CECOMAF)
Protektor termik: MRA38134 ose T0348 (15.4A – 15.8A)

Application High Back Pressure
Refrigerant R134a
Evaporating Temp. -15,0 ºC to 10,0 ºC
Expansion Capillar/Valve
Comp. Cooling Fan cooled
Max. ambient temp. 43,0 ºC
Compatible refriger. R1234yf
Displacement 16,15 cm³
Diameter 31,19 mm
Stroke 21,13 mm
Net Weight 11,93 Kg
Oil type ISO VG 32 ESTER
Oil charge 400 cm³
Nominal Power 3/8 hp
Voltage/Frequency 220-240V 50Hz
Voltage range 198-255 V
Type CSIR
Phase number 1 PH
Locked Rotor Amps (LRA) 20,00 A
Max. Cont. Current (MCC) 5,00 A
Main W. resist. at 25ºC 4,83 Ω
Start W. resist. at 25ºC 20,22 Ω
Cooling Capacity 1.204 W
COP 1,80 W/W
EER 1,55 kCal/Wh
Input Power 670 W
Current 3,92 A

Application High Back Pressure
Refrigerant R134a
Evaporating Temp. -15,0 ºC to 10,0 ºC
Expansion Capillar/Valve
Comp. Cooling Fan cooled
Max. ambient temp. 43,0 ºC
Compatible refriger. R1234yf
Displacement 10,70 cm³
Diameter 25,40 mm
Stroke 21,12 mm
Net Weight 10,23 Kg
Oil type ISO VG 32 ESTER
Oil charge 345 cm³
Nominal Power 3/8 hp
Voltage/Frequency 220-240V 50Hz
Voltage range 198-255 V
Type CSIR
Phase number 1 PH
Locked Rotor Amps (LRA) 14,80 A
Max. Cont. Current (MCC) 3,60 A
Main W. resist. at 25ºC 8,43 Ω
Start W. resist. at 25ºC 31,30 Ω
Cooling Capacity 867 W
COP 1,97 W/W
EER 1,70 kCal/Wh
Input Power 441 W
Current 2,51 A

COOLING CAPACITY 650 W (MBP)
Type Hermetic reciprocating
Technology Type On-Off
Displacement 7.28 cm³
Compressor Cooling Fan/NotControled/220
Fan Air Flow 520 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1/3 hp
Max Condensing Pressure Operating 24.71 bar
Max Condensing Pressure Peak 27.71 bar
Power Supply 220-240 V 50 Hz
Motor type CSIR
Starting Torque HST
Start Winding Resistance 28.2 Ω at 25ºC
Run Winding Resistance 6.1 Ω at 25ºC
Maximum Recommended Refrigerant Charge 350 g
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 350 ml
Pressurization Dry air charge
Free Internal Volume 2.1 L
Weight 10.4 Kg
Starting Device Relay | MTRP-41*
Motor Protection T0874/G6
Start Capacitor 43-53 Uf/330 V

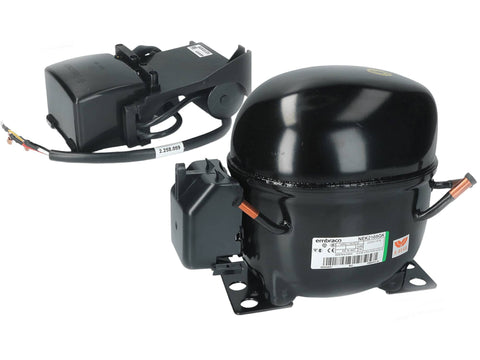

Modeli: NEK2168GK
Furnizimi me energji elektrike: 220-240 V, 50 Hz
Lloji i motorit: CSCR (Capacitor Start, Capacitor Run)
Kapaciteti ftohës: 711 W
Konsumi i energjisë: 548 W
Freoni i përdorur: R-404A
Aplikimi: LBP (Low Back Pressure)
Efikasiteti: 1.3 W/W
Të dhënat elektrike:
Kondensatori i startit: 88-10B μF/230 V
Kondensatori i punës: 10.0 μF/440 V
Mbrojtja nga mbingarkesa: T0634/69
Të dhënat mekanike:
Zhvendosja e cilindrit: 14.28 cm³
Vëllimi i vajit: 350 ml
Lloji i vajit: ESTER (sintetik)
Viskoziteti i vajit: 15022
Pesha: 11.6 kg
Standardi: ASHRAE

Application High-Medium Back Pressure
Displacement 20,72 cm³
Nominal Power 1 hp
Refrigerant R404A
Diameter 34,93 mm
Voltage/Frequency 220-240V 50Hz
Evaporating Temp. -25,0 ºC to 10,0 ºC
Stroke 21,62 mm
Voltage range 198-255 V
Expansion Capillar/Valve
Net Weight 16,52 Kg
Type CSR
Comp. Cooling Fan cooled
Oil type ISO VG 32 ESTER
Phase number 1 PH
Max. ambient temp. 43,0 ºC
Oil charge 500 cm³
Locked Rotor Amps (LRA) 37,00 A

Model    EMT2130GK
Type    Hermetic Reciprocating
Technology    ON/OFF
Compressor Application    LBP
Expansion Device    Capillary Tube or Expansion Valve
Compressor Cooling    Fan
HP    1/2-
Starting Torque    HST
Plant    BRAZIL
Start Winding Resistance    16.95 Ω at 25°C
Run Winding Resistance    10.1 Ω at 25°C
Locked Rotor Amperage (LRA) 50Hz    12.4 A
Rated Load Amperage (LMBP) At 50 Hz    2.8 A
Rated Load Amperage (HBP) At 50 Hz    3 A
Displacement    6.76 cm³
Oil Charge    180 ml
Oil Type    ESTER
Oil Viscosity    ISO22
Weight    8 Kg
Start Capacitor    72-88 μf/330 V
CSR CSIR BOX    No
Starting Device Type    RELAY
Overload Protection    DRB200L52AXF

COOLING CAPACITY 516 W (MBP)
Type Hermetic reciprocating
Technology Type On-Off
Displacement 5.19 cm³
Compressor Cooling Fan/NotControled/220
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1/3 hp
Power Supply 220-240 V 50 Hz
Motor type CSIR
Starting Torque HST
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 180 ml
Weight 7.8 Kg
Motor Protection T0571/G6
Start Capacitor 53-64 Uf / 330 V
Starting Device Relay | MTRP-38*

Kompresor: EMBRACO
Modeli: T6217E
Gazi: R22
Tensioni: 115 V 60 Hz / 100 V 50 Hz
Aplikimi: Presion i mesëm – i lartë (M/HBP)
Kushtet e testimit: ASHRAE HBP 46
Cilindrata: 14,5 cm³
Motori: CSIR
Fuqia (HP): 3/4
Kapaciteti ftohës: 1890 W / 1625 kcal/h / 6449 Btu/h
COP (koeficient performance): 2,08 W/W
Pajisja e ndezjes: Relé
Kondensatori: 145–175 µF

Refrigerant:R22
Power range(W):3 - 5 kW
Working area:MBP HBP
Design type:Hermetic
Model series:NJ
Use with:Expansion/Capillary
Power range(HP):0-2
Power supply:230 V
Oil type:ISO46
Engine type:CSR
Article condition:New
Info:Oil filled
Shipping weight:24,20 kg
customs tariff number:84143081
Cooling capacity condition:+7,2°C tk +54,4 °C
Manufacturer:Embraco Aspera
Model:NJ9238E
Modelname:J9238E
Stroke volume (cm3):32,7
Cooling capacity (W):4513
Power (HP):1,5
Max. Starting current (A):43
Engine type:CSR
Note:Fan cooling necessary
Oil quantity (l):0,75
Compressor type:Piston

Modeli: Cubigel ML80FB
Tipi: Kompresor hermetik me piston për temperatura të ulëta (LBP)
Fuqia komerciale: 1/4 HP (kuaj fuqi)
Vëllimi i pistonit: 8.10 cm3
Gazi ftohës: R404A / R507 / R452A
Tensioni dhe frekuenca: 220-240V / 50Hz monofazë
Tipi i motorit: CSIR (Nisje me kondensator)
Mënyra e ftohjes: Me ventilator (Ftohje e detyruar)
Gama e temperaturës së avullimit: -40 °C deri në -10 °C
Kapaciteti ftohës në temperaturën -23.3 °C: 371 Watt (ose 319 kCal/h)
Fuqia elektrike e konsumuar: rreth 340 Watt
Rryma elektrike nominale: 2.10 Amper
Tipi i vajit: ISO VG 32 ESTER ose ISO VG 46 ESTER
Sasia e vajit: rreth 295-300 cm3
Diametri i tubit të thithjes: 6.5 mm
Diametri i tubit të shkarkimit: 4.9 mm
Pesha neto: rreth 9.4 deri në 10.0 kg

EMT2121GK ML60FB NB2121GK FR6CL

COOLING CAPACITY 2025 W (HBP)
Type Hermetic reciprocating
Technology Type On-Off
Displacement 22.37 cm³
Compressor Cooling Fan/NotControled/200
Fan Air Flow 520 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1 hp
Max Condensing Pressure Operating 13.92 bar
Max Condensing Pressure Peak 15.62 bar
Power Supply 200-240 V 50 Hz / 230 V 60 Hz
Motor type CSIR
Starting Torque HST
Start Winding Resistance 12.16 Ω at 25ºC
Run Winding Resistance 1.86 Ω at 25ºC
Maximum Recommended Refrigerant Charge 800 g
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 450 ml
Pressurization Dry air charge
Free Internal Volume 3.3 L
Weight 17.2 Kg
Start Capacitor 88-108 Uf / 330 V
Starting Device Relay | MTRPH-55*
Motor Protection T0901/G6

Application High-Medium Back Pressure
Refrigerant R134a
Evaporating Temp. -25,0 ºC to 10,0 ºC
Expansion Capillar/Valve
Comp. Cooling Fan cooled
Max. ambient temp. 43,0 ºC
Compatible refriger. R1234yf
Displacement 18,40 cm³
Diameter 34,93 mm
Stroke 19,20 mm
Net Weight 15,44 Kg
Oil type ISO VG 32 ESTER
Oil charge 500 cm³
Nominal Power 1/2 hp
Voltage/Frequency 220-240V 50Hz
Voltage range 198-255 V
Type CSIR
Phase number 1 PH
Locked Rotor Amps (LRA) 24,00 A
Max. Cont. Current (MCC) 6,60 A
Main W. resist. at 25ºC 3,40 Ω
Start W. resist. at 25ºC 26,00 Ω
Cooling Capacity 1.389 W
COP 1,90 W/W
EER 1,64 kCal/Wh
Input Power 732 W
Current 4,50 A

COOLING CAPACITY 1954 W (HBP)
Type Hermetic reciprocating
Technology Type On-Off
Displacement 20.44 cm³
Compressor Cooling Fan/NotControled/220
Fan Air Flow 520 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 3/4 hp
Max Condensing Pressure Operating 13.92 bar
Max Condensing Pressure Peak 15.62 bar
Power Supply 220-240 V 50 Hz
Motor type CSCR
Starting Torque HST
Start Winding Resistance 11.22 Ω at 25ºC
Run Winding Resistance 3 Ω at 25ºC
Maximum Recommended Refrigerant Charge 800 g
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 450 ml
Pressurization Dry air charge
Free Internal Volume 3.3 L
Weight 17 Kg
Run Capacitor 15
Start Capacitor 72-88 Uf / 330 V
CSR / CSIR Box YES
Motor Protection T0634/G9
Starting Device RVA2M3C-111

Capacity-3,282 / 3,722 Watts
Power Input-2,550 / 2,970 Watts
Application-LBP (-23,3°C / +54,4°C)

COOLING CAPACITY 2973 W (HBP)
Type Hermetic reciprocating
Technology Type On-Off
Displacement 34.38 cm³
Compressor Cooling Fan/NotControled/220
Fan Air Flow 800 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1 1/4 hp
Max Condensing Pressure Operating 13.92 bar
Max Condensing Pressure Peak 15.62 bar
Power Supply 220-240 V 50 Hz
Type Hermetic reciprocating
Technology Type On-Off
Displacement 34.38 cm³
Compressor Cooling Fan/NotControled/220
Fan Air Flow 800 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1 1/4 hp
Max Condensing Pressure Operating 13.92 bar
Max Condensing Pressure Peak 15.62 bar
Power Supply 220-240 V 50 Hz
Maximum Recommended Refrigerant Charge 800 g
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 750 ml
Pressurization Dry air charge
Free Internal Volume 3.9 L
Weight 19.8 Kg
Start Capacitor 72-88 Uf / 330 V
CSR / CSIR Box YES
Starting Device RVA4M3C-109
Run Capacitor 17.5
Motor Protection T0335/C9

Marka    Kulthorn Kirby
Modeli    AW5538Z-9
Tipi i kompresorit    Hermetik / Reciprocating
Aplikimi    HBP / A/C
Gazi frigoriferik    R404A
Tensioni    380–420 V / 50 Hz, 460 V / 60 Hz
Faza    3 Phase
Kapaciteti frigoriferik    9,168 / 10,976 W
Fuqia hyrëse    3,235 / 3,840 W
COP    2.83 / 2.86
EER    9.67 / 9.75 BTU/W-h
Rryma e bllokimit LRA    50.00 / 50.00 A
Rryma nominale RLA    7.10 / 7.20 A
Zhvendosja    59.00 cc
Tipi i vajit    Polyolester Oil
Sasia e vajit    964 cc
Pesha me vaj    28.89 kg
Pesha me vaj dhe aksesorë    29.39 kg

Modeli: NEK6214Z
Kapacitet Ftohjeje: 1461 W (HBP)
Lloji: Hermetik reciprocating
Zhvendosja: 16.8 cm³
Presioni Maksimal: 13.92 bar (operim) / 15.62 bar (peak)
Furnizim: 220-240 V, 50 Hz
Lloji Motorit: CSIR
Pesha: 11.6 kg
Sasia Maksimale Ftohësi: 350 g
Lloji Vaji: Ester ISO22, 350 ml
Kapacitor Nisje: 72-88 µF / 330 V
Nisja: Relay MTRPH-0012-65*

Type Hermetic reciprocating
COOLING CAPACITY 1318 W (HBP)
Technology Type On-Off
Displacement 14.28 cm³
Compressor Cooling Fan/NotControled/220
Fan Air Flow 520 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1/2 hp
Max Condensing Pressure Operating 13.92 bar
Max Condensing Pressure Peak 15.62 bar
Power Supply 220-240 V 50 Hz
Evaporating Temperature Range -15 °C to 10 °C
Motor type CSIR
Starting Torque HST
Start Winding Resistance 27.95 at 25° C
Run Winding Resistance 5.11 at 25° C
Maximum Recommended Refrigerant Charge 350 g
Oil Charge 350 ml
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Pressurization Dry air charge
Weight 11.2 Kg
Free Internal Volume 2.1 L
Start Capacitor 72-88 Uf / 330 V
Starting Device Relay | MTRP-0012*
Motor Protection T0741/G6

Production Facility-Thailand
Brand-Kulthorn
Compressor TypeHermetic-Reciprocating
Application-HBP (+7,2°C / +54,4°C)
H.Power-2hp
Power Supply-380V
Refrigerant-R404a
Cooling Capacity (Watt)-6.460
Motor Type-3 PHASE
Diplacement (cm3/rev)-43,10
Suction Line-1/2"
Discharge Line-3/8"

Type Hermetic reciprocating
Displacement 9.99 cm³
Fan Air Flow 520 m³/h
Expansion Device Capillary Tube or Expansion Valve
Horse Power 1/3 hp
Motor type CSIR
Maximum Recommended Refrigerant Charge 350 g
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 350 ml
Weight 10.52 Kg
Start Capacitor 53-64 Uf
Cooling Capacity 787w

Production Facility-Thailand
Brand-Kulthorn
Compressor Type-Hermetic Reciprocating
Application-HBP (+7,2°C / +54,4°C)
H.Power-1.1/2
Power Supply-220V
Refrigerant-R404a
Cooling Capacity (Watt)-5.334
Diplacement (cm3/rev)-34,50
Frequency (Hz)-50
Suction Line-1/2"
Discharge Line-3/8"

Type - Hermetic reciprocating
Technology Type - On/Off
Displacement - 11.14 cm³
Compressor Cooling - Fan/NotControled/220
Expansion Device - Capillary Tube
Horse Power - 1/3 hp
Power Supply - 220/240 V 50 Hz
Oil Type Configuration ESTER
Oil Type Viscosity ISO22
Oil Charge 280 ml
Weight 10.9 Kg
Start Capacitor 88-108 Uf / 220V

Application High-Medium Back Pressure
Refrigerant R134a
Evaporating Temp. -25,0 ºC to 10,0 ºC
Expansion Capillar/Valve
Max. ambient temp. 43,0 ºC
Displacement 8,85 cm³
Net Weight 9,34 Kg
Oil type ISO VG 32 ESTER
Oil charge 295 cm³
Nominal Power 1/4 hp
Voltage/Frequency 220-240V 50Hz
Type CSIR
Phase number 1 PH
Locked Rotor Amps (LRA) 12,00 A
Cooling Capacity 660 W

Modeli: GL10TB
Tensioni: 220–240 V / 50 Hz
Gaz: R134a
Zhvendosja (Displacement): 9.3 cm³
Lloji i motorit: CSIR
Kapacitet ftohës: 930 W
Fuqia hyrëse: 413 W
Efikasiteti (COP): 2.25
Kapacitor nisjeje: 50 µF
Kapacitor pune: -
Lartësia: 184 mm
Pesha: 10.2 kg
Certifikime: CCC / VDE
Lloji i ftohjes: Me ventilator (Forced air cooling)
Aplikimi: HMBP – temperatura mesatare, p.sh. frigoriferë komercialë
Kushtet e testimit: +7.2°C avullim / +54.4°C kondensim

Modeli: AZ4414Y
Prodhuesi: Tecumseh (L'Unité Hermétique)
Gazi Ftohës: R134a
Tensioni i Punës: 100-115V ~ 50/60Hz (Kërkon transformator për rrjetin 220V)
Fuqia Motorike: 1/3 HP
Fuqia Ftohëse (Watt): 343 W
Kapaciteti Ftohës (BTU/h): 1,170 BTU/h
Vëllimi: 4.06 cc (centimetra kub)
Klasifikimi: HBP (High Back Pressure) – Për ftohje/freskim.
Gama e Temperaturës: -5°C deri në +15°C (Evaporimi).
Konsumi (Watt): ~298 W
Amperazhi: 2.4 A
Rryma e nisjes (LRA): 17A (50Hz) / 20A (60Hz)
Lloji i Vajit: POE (Poliolester) – 250cc
Pesha: ~8.2 kg
Përdorimi dhe Aplikimet:
Pajisjet: Vitrina frigoriferike pijesh, ftohës qumështi, tavolina ftohëse për bare/restorante dhe automate (vending machines).
Karakteristikat: Operim i heshtur, dridhje minimale dhe mbrojtje termike e integruar

Modeli: GL12TB
Tensioni: 220–240 V / 50 Hz
Gaz: R134a
Zhvendosja (Displacement): 11.2 cm³ (tregon volumin e gazit që kompresori thith dhe shtyn në një cikël pune)
Lloji i motorit: CSIR
Kapacitet ftohës: 1050 W
Fuqia hyrëse: 460 W
Efikasiteti (COP): 2.28
Kapacitor nisjeje: 50 µF
Kapacitor pune: -
Lartësia: 184 mm
Pesha: 10.2 kg
Certifikime: CCC / VDE
Lloji i ftohjes: Me ventilator (Forced air cooling)
Aplikimi: HMBP – për temperatura mesatare (p.sh. frigoriferë vitrinë, dyer xhami etj.)
Kushtet e testimit: +7.2°C avullim / +54.4°C kondensim ASHRAE
